product introduction:

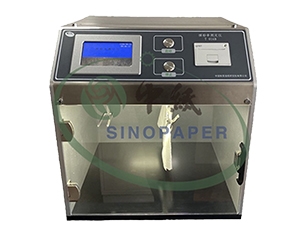

dusting rate tester is suitable for measuring the powder dropping rate of toilet paper and sanitary base paper, which can simulate the situation of paper hair and paper powder falling off when the toilet paper is shaking. the instrument adopts closed design, all four sides are made of flat metal plate and plexiglas, which can effectively suppress the influence of internal air eddy current on the measurement results. the instrument is equipped with automatic clamping device, automatic weighing device, plc process control. the detection process is highly intelligent. it can realize the functions of weighing samples before testing, automatic testing, weighing after testing, and calculating powder loss rate with one button. the instrument adopts touch screen button operation; test data can be printed and transferred to an external pc.
reference standard:
gb/t 20810 gb/t 20808
technical parameters:
range：0-300g
value resolution：0.001g
accuracy：0.03%fs
repeatability：0.03%fs
reciprocating frequency：180±1 times/min
test time：2min
reciprocating stroke：100±1mm
printing function: high speed thermal paper printer
communication: equipped with rs232 portnon - core-rolled paper automatic
weighing maximum diameter：φ110mm
core rolled paper automatic weighing
maximum diameter：φ120mm
air source：0.6mpa
noise：＜ 65db
power supply：220v/50hz
dimensions, mm：l450×w400×h490
net weight：40kg
