product introduction:

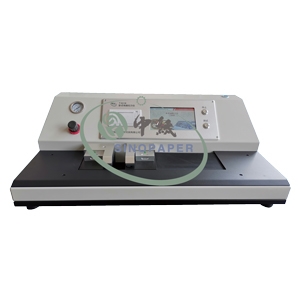

t 001b horizontal model computer tension tester is a special instrument for testing the tensile strength of paper and the wet tensile strength of paper. the instrument adopts horizontal design, compact structure, complete functions, easy to operate. using pneumatic clamping structure, sample leveling, it reduces the manual clamping device of human error. it adopts advanced microcomputer technology, with powerful data processing function, automatic reset, easy adjustment, stable performance. it uses large screen color touch lcd display, chinese menu, real-time display of various data and stretching curve.
the specific functions of the instrument are as follows:
1. measure paper tensile strength, tensile strength, elongation, fracture length, tensile energy absorption, tensile index, tensile energy absorption index,
2. measure the tensile strength, wet tensile strength and elongation of sanitary napkins.
main performance:
1. servo motor, low noise, accurate control.
2. automatic judgment and clamping function of fixture, automatic positioning by changing test parameter setting3. large color touch lcd display, chinese menu, real-time display of various data and stretching curve.
4. directly obtain the measurement results: after a group of tests are completed, the measurement results can be conveniently and directly displayed and statistical reports printed, including the mean, standard deviation and coefficient of variation.
5．variable sample size and tensile speed: the commonly used standard size sample, directly to the prescribed speed of tensile test, can also be required with the situation, set the appropriate tensile speed, change the test length and width of the sample.
6. highly automated: the instrument design of domestic and foreign advanced devices, monolithic microcomputer for information sensing, data processing and action control, with automatic reset, data memory, overload protection.
7.data communication: the instrument is equipped with standard serial rs232 interface, can provide data communication for the upper computer.
reference standard:
iso 1924《纸和纸板抗张强度的测定》
gb/t12914《纸和纸板抗张强度的测定》
gb/t 465 《纸和纸板浸水后抗张强度的测定》
gb/t 22898《纸和纸板抗张强度的测定恒速拉伸法(100mm/min)》
gb/t2438.3《卫生纸及其制品第3部分：抗张强度、断裂时伸长率和抗张能量吸收的测定》
gb/t2438.4《卫生纸及其制品第4部分：湿抗张强度的测定》
technical parameters:
measuring range: (0.1~30) n(standard)/ (1~300) n(optional)
resolution: 0.01 n
accuracy: indicating value error ±0.5%, indicating value variability ≤0.5%
measuring range of elongation: (0 ~ 130) mm (under 180mm standard test length)
elongation measurement accuracy: ±0.1mm test speed adjustment range: (1 ~ 500) mm/min
test speed error: (1 ~ 10) mm/min: ±1mm/min ,(> 10 ~ 500) mm/min: ±5%
clip spacing (test length) : 50mm ~ 200mm
sample width: 15mm ~ 50mm
clip spacing positioning error: ±0.5mm
moving chuck reset error: ±0.1mm
working pressure: 0.15 ~ 0.6mpa
power supply: 220v±10% 50hz 2a
machine power: 150w
dimensions: l720×w420×h260
machine weight: 60kg
