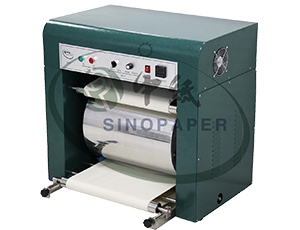

product introduction:
this equipment adopts mteih heating technology. the dryer can ensure good temperature uniformity both in continuous rotation and static state, especially suitable for high quantitative paper drying. the hot start is fast, the average preheating time is more than 60% shorter than the ordinary heating method, and the thermal efficiency is up to more than 90%, and the equipment is easy to overhaul and maintenance. the dryer is equipped with a supporting roller, lifting the supporting roller can improve the paper tightness and the smoothness of the cylinder surface; gratuitous blanket design, free to pick up and put paper. equipped with emergency shutdown rollback function to prevent accidents.
technical parameters:
drum diameter: 400mm
drum width:540mm
surface coating: chromeplate
temperature control: automatic temperature control
temperature uniformity:±2.0℃（within the width of the dryer）
temperature control accuracy:±0.5℃
max. temperature:120℃
temperature measurement method: contact surface temperature measurement
rotation mode: motor driven
conveyor speed:0-1.75rpm
motor power:0.2kw
heating power:5.0kw
power supply:380v/50hz
dimension,mm:l840×w520×h800
net weight:100kg
patents:
zl 2016 2 1148484.5
zl 2016 2 1097957.3
zl 2016 2 1098042.4
