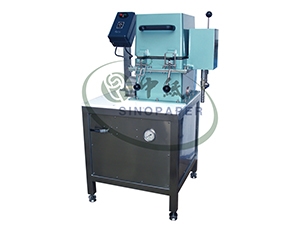

product introduction:
the instrument is driven by the motor eccentric wheel, the rubber mold vibration up and down to produce vacuum suction, pulp fiber screening, so as to determine the content of sieve residue in the fiber.
technical parameters:
material of screen: copper or sus-316
screen size:305×254mm
screen slits width:0.140-0.155mm
screen slits length:45±0.5mm
amplitude:3.2±0.1mm
vibration frequency:700±10rpm
water flow rate:8.6±0.2l/min
water pressure:124±5kpa
overflow height:102±2mm
screen time:20±1min
motor power:0.25kw
power supply:380v/50hz
dimension,mm:l840×w740×h1300
net weight:160kg
reference standard:
tappi t 275
