product introduction:

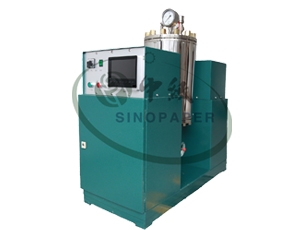

vertical rotating digester is a small pulping experimental equipment used by pulping and paper enterprises, universities, scientific research institutions and related industries, which is suitable for alkaline and acid cooking of various plant fiber raw materials. according to different process conditions, the desired size can be obtained.
main performance:
with new heating system (mteih), fast heating, accurate temperature control, heating elements can be guaranteed for 5 years. the overall design of the equipment is compact, simple, corrosion resistance and safety, with more user-friendly design elements incorporated.
1.use man-machine dialogue touch screen, which can set up to 30 sections of heating curve, can set and view the heating curve intuitively.
2.the circuit system adopts hidden design to prevent short circuit caused by corrosion or damage of the circuit.
3. the double safety design is adopted. in addition to the safety valve, the overpressure automatic alarm and power off system are also equipped;
4. add the emergency stop button so that the power supply can be quickly cut off on either side of the equipment..
technical parameters:
capacity1:15.7l
material:sus-316l
valve seal material:peek
sealing type of valve: face seal
heating conductive parts: slip ring (ip65)
rotating speed:1.62rmp
working pressure2:≤1.0mpa
working temperature:≤175℃
safety valve opening pressure:1.3mpa
safety protection: overpressure power off (can be set by oneself); emergency stop switch
heating power:5.0kw
motor power:0.25kw
power supply:380v/50hz
dimension,mm:l1040×w450×h1000
net weight:250kg
1 optional vessels, 1.2l×4.
2.other pressures can be customized
reference standard:
q/t 1851
