product introduction:

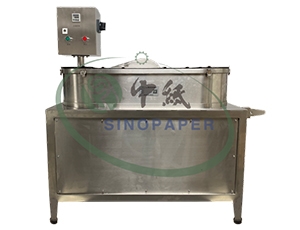

valley pulp beater is one of the most commonly used beating equipment in the laboratory. it is composed of pulp groove, middle wall, mountain shape, flying knife roller, bottom knife bed, pressure mechanism and other parts. it can make the fiber cut off, crush, moisten and fine fibrosis changes under the action of mechanical force, so that the pulp can meet the requirements of paper forming.
main performance:
1. the parts contacting with water are stainless steel, rust and corrosion resistant;
2. equipped with double self-locking protection device to avoid accidents;
3. equipped with backwashing device, easy to clean;
4. equipped with automatic beating time control system, can accurately control the beating time.
5. there are 7 contact marks between the bottom knife and the flying knife, and the knife marks are clear.
reference standard:
iso 5264-1
gb/t 24325
qb/t1570
technical parameters:
tub capacity:23l
material of tub:sus-304
thickness of tub:≥6mm
material of flybar: stainless steel
hardness of flybar:350-400hb
roll diameter:φ190-194mm
roll width:152mm
radius of leading edge of flybar:0.2-0.3mm
flybar thickness:4.7mm
rotational frequency:8.3±0.2s-1
bedplate material: stainless steel
hardness of bedplate:325-375hb
bedplate thickness:3.2mm
number of bedplate:7
bedplate width:159mm
lever arm ratio:1.94︰1
load on the lever arm:54±1n
flybar speed:498±12rpm
motor power:0.55kw
power supply:380v/50hz
dimension,mm:l1280×w550×h1400
net weight:275kg
