product introduction:

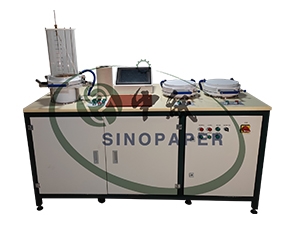

rapid köthen sheet former is composed of shaper, paper uncovering device, dryer and auxiliary equipment. it is suitable for producing paper or other types of fiber sheet with diameter of 200mm. the equipment adopts "flash vacuum" dehydration technology, the uniformity of the paper page can be effectively increased by 4.8%.
reference standard:
iso 5269-2
gb/t 24326
technical parameters:
1. the equipment consists of a shaper, a transfer device, two dryers and accessories.
2. copy diameter :200mm±0.5mm
3. the part in contact with the slurry or water is corrosion resistant material (stainless steel, copper or engineering plastics).
4. operation mode: automatic, manual and programming modes. automatic procedures comply with iso 5269-2 and gb/t 24326-2009 standards; manual procedures include loading water, pumping air, settling, dewatering, draining and stopping procedures; you can also enter the programming mode according to the process of the copying experiment.
5. the paper page shaper includes a slurry storage device, a screen part and a suction chamber.
6. volume of slurry storage chamber :12l
7. air and water hole: the aperture is 1.5mm, divided into two rows, 40 in each row, the two rows of holes are crossed and evenly distributed, the lower row of holes is 10mm away from the surface of the screen, and the distance between the upper and lower rows of holes is 7mm. the lower hole is horizontal, and the upper hole is at an angle of 30º from the surface of the screen.
8. the screen part is composed of a forming net and a supporting net.
9. the forming net is made of phosphor bronze wire or nickel wire, 60 warp /cm, 55 weft /cm, wire diameter 0.060-0.065mm.
the 10 support network is made of phosphor bronze wire woven in a single line, with 8 warp /cm and 7 weft /cm, and the wire diameter is 0.35mm.
11. the support of the mesh: the rib is 2mm wide, 30mm high and 10 ± 2mm apart. the two edges of the upper end of the rib are diagonally cut into a chamfer of 75 º to the horizontal, and a 0.5mm wide flange is left at the top of each rib.
12. suction chamber :17l, connected with vacuum pump; with a regulating valve to limit the maximum vacuum of the suction chamber to 27kpa.
13. the transfer device includes a roller and a paperboard.
14. roll :φ125±5mm, length 250±10mm, weight 3.0±0.2kg, the outer layer is made of 20mm±2mm thick elastic wool.
15. the dryer includes three parts: heating chamber, support network and steam chamber.
16. heating chamber: including an inlet and an outlet for circulating 93±4℃ hot water. the bottom of the heating chamber is equipped with a rubber film with high temperature resistance, high elasticity and 1-2mm thickness. the contact part of the handwritten sheet is fabric with a diameter slightly greater than 201mm. the heating chamber is connected with an automatic constant temperature heater (with a sink) at the bottom of the equipment.
17. dryer support net and support plate: the support net has two layers of phosphor bronze net. the upper net: 32 warp wires/cm, 24 weft wires/cm, and the wire diameter is 0.16-0.17mm; the lower net: 8 warp threads/cm, 7 weft threads/cm, wire diameter 0.35mm. the support plate is a perforated plate with a thickness of 2mm, an aperture of 3-4mm and a spacing of 5mm. the plate can withstand a surface pressure of 100kpa without deformation.
18. steam chamber: equipped with cold water chamber (iso 5269-2 and gb/t 24326-2009 standard), cooling water temperature is not higher than 20℃.
19. the dilution pump injects water filtered by the filter into the slurry reservoir at a flow rate of 18-20l/min, and the liquid level is controlled by the probe (the carrier is non-distilled water).
20. the air source can be injected into the slurry reservoir at a flow rate of 60l/min.
21. the hot water heater provides 93±4℃ hot water and is equipped with a low level alarm. the heating mode is graded (2kw 2kw).
22. the hot water pump provides 3-6l/min of circulating hot water between the hot water heater and the heating chamber with adjustable flow.
23 vacuum pump can make the vacuum of steam chamber up to -0.08mpa within 10 seconds; high efficiency vacuum pump pressure :-0.094±0.002mpa.
24. button (except main power switch):24v, ip65 waterproof
25. timing device: automatic electronic timer
26.air pressure:400-600kpa
27. water supply:100-500kpa
28. motor power:0.75kw
29. power supply:380v/50hz
30.dimension,mm:l1800×w900×h1500
31.net weight:350kg
32. net weight:350kg
standard configuration：
1. 5 spare molding nets.
2. one set of spare sealing rings for slurry storage device and dryer (4 in total).
3. 1 wool roller.
4. one silicone pad.
5. load 100 pieces of cardboard.
6. one net stretcher.
selective configuration：
1. oil-free silent air compressor
2. white water circulation system
3. the spray ring
patents:
zl 2016 2 1098045.8
